Introduced in September 1955, the MGA was the first sports car that MG produced in full width, contemporary style bodywork, however it was still built on a separate chassis. This 2-seater used first of all the BMC B series 1489cc engine, which was powerful enough to propel the car to nearly 100 mph. A year later a steel roofed coupe was launched and this featured wind-up windows and a higher level of passenger comfort. The Coupe despite being slightly heavier than the roadster, could due to its improved aerodynamics, just break the 100 mph barrier.
In 1958 a Twin cam 1600 engine version of the car was introduced alongside the 1500, and this featured an alloy cylinder head on a 1588cc version of the BMC B series engine and was fitted with disc brakes on all four wheels. Although this car could achieve speeds of approximately 120 mph it was dropped in 1960 after about 2000 models had been built, partly due to the fact that this twin cam engine proved to be rather troublesome and unreliable. From 1959 The MGA 1600 was put into production replacing the 1500 of which nearly 60,000 had been built, and this used the conventional overhead valve 1588cc engine fitted with a cast Iron cylinder head. This version used disc brakes on the front wheels but did have the option of all wheel disc brakes. 1961 saw the final version of the MGA, the 1600 Mk II which used the 1622cc B series engine, while the bodywork and interior both saw some minor styling changes. Production of this last MGA ended in 1962 when the MGB was launched.
Specifications |
||||
---|---|---|---|---|
Model |
1500 |
1600 |
1600 Twin Cam |
1600 Mk II |
Years Produced |
1955-1959 |
1959-1960 |
1958-1960 |
1961-1962 |
Body Type |
2 door roadster & coupe, all steel body on steel chassis |
|||
Length |
13ft 0in |
13ft 0in |
13ft 0in |
13ft 0in |
Width |
4ft 10in |
4ft 10in |
4ft 10in |
4ft 10in |
Weight |
2015lb |
2015lb |
2056lb |
2015lb |
Engine |
4 cyl 1489cc ohv* |
4 cyl 1588cc ohv* |
4 cyl 1588cc dohc* |
4 cyl 1622cc ohv* |
Power (bhp / rpm) |
72 @ 5500 |
79.5 @ 4800 |
108 @ 6700 |
90 @ 5500 |
Torque (lb ft / rpm) |
77 @ 3500 |
87 @ 3800 |
105 @ 4500 |
97 @ 4000 |
Gearbox |
4 speed manual with synchromesh on 2nd, 3rd and top |
|||
Driven Wheels |
Rear |
Rear |
Rear |
Rear |
Brakes |
Drum front & rear |
F: disc. R: drum |
Drum front & rear |
F: disc. R: drum |
Front Suspension |
Independent, coil spring and wishbone |
|||
Rear Suspension |
Live Axle, leaf springs |
|||
* ohv = overhead valve, dohc = double overhead camshaft |
Performance |
||||
---|---|---|---|---|
Model |
1500 |
1600 |
1600 Twin Cam |
1600 Mk II |
Top Speed |
98 mph |
96 mph |
120 mph |
102 mph |
0-60 mph |
15.7 seconds |
14.2 seconds |
9.1 seconds |
13.7 seconds |
Fuel Consumption |
28 mpg |
24 mpg |
22 mpg |
22 mpg |
Useful Links |
|
---|---|
To add a link, report an error, or contribute a photograph - click here |

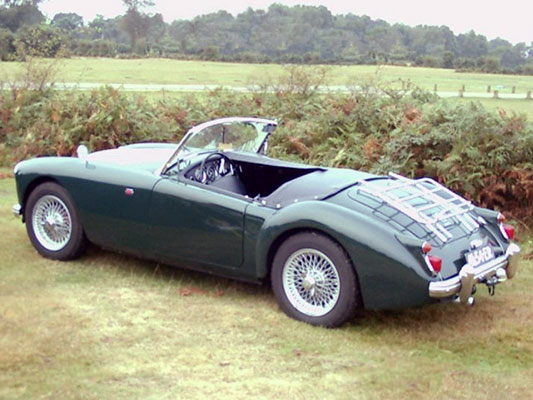

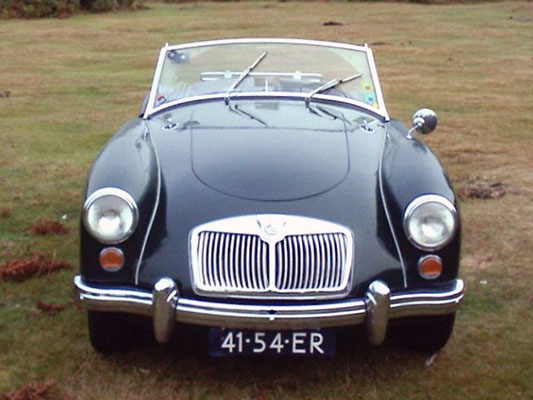

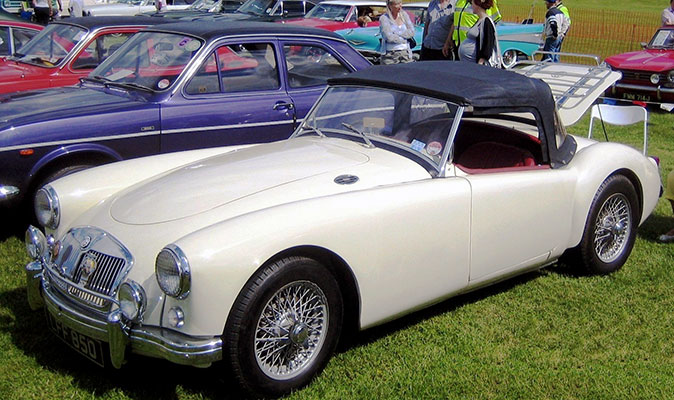

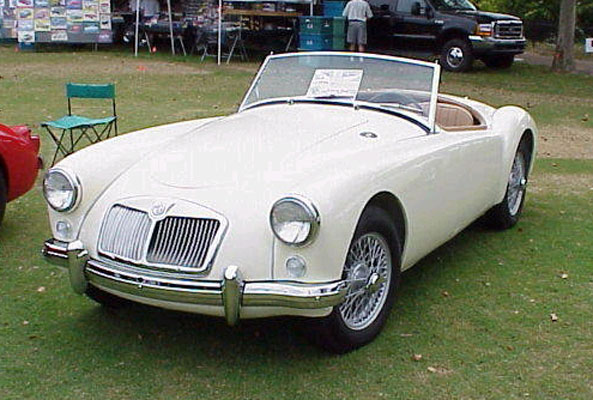

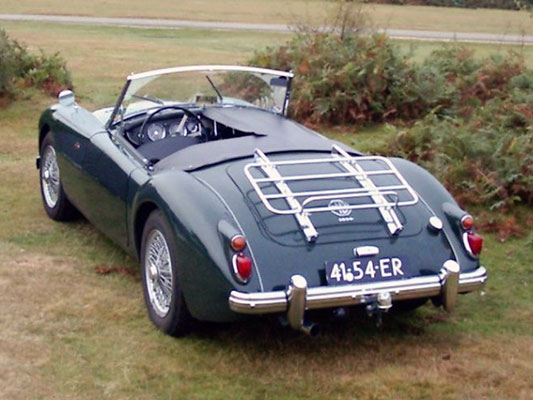

Gallery
