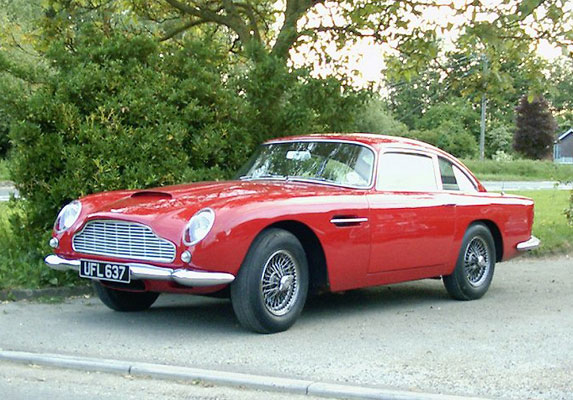

The Aston Martin DB5 was launched in 1963, and was a development of the previous DB4 model which it replaced. Available as both sports saloon or convertible, the DB5 was slightly longer and also heavier than its predecessor, but the weight disadvantage was offset by the 4 litre version of the double overhead engine which produced 282 bhp. A higher performance Vantage model of the DB5 was also made and the power output on this car was 325bhp. Early cars were fitted with a four speed gearbox but had the option of three speed automatic, or a five speed ZF manual unit. The five speed gearbox soon became standard equipment on all DB5 cars. Further improvements over the DB4 included an improved exhaust system, alternator rather than dynamo, and electric windows as standard. Air conditioning was available as an option. In 1964 the DB5 found fame as the transport of a certain James Bond (played by Sean Connery) in the film Goldfinger, making it probably the best known of all Aston Martin models. After production of just over 1000 cars the DB5 was replaced in 1965 by the DB6.
Specifications |
||
---|---|---|
Model |
DB5 |
DB5 Vantage |
Years Produced |
1963-1965 |
1963-1965 |
Body Type |
2-door, 4-seater saloon or drophead coupe, all alloy bodywork |
|
Length |
15ft 1in |
15ft 1in |
Width |
5ft 6in |
5ft 6in |
Weight |
3230lb |
3230lb |
Engine |
3995cc 6 cylinder inline |
3995cc 6 cylinder inline |
Power |
282 bhp @ 5500 rpm |
325 bhp @ 5500 rpm |
Torque |
280lb ft @ 4500 rpm |
290lb ft @ 4500 rpm |
Gearbox |
5 speed manual, (early cars 4 speed) optional overdrive or automatic |
|
Driven Wheels |
Rear |
Rear |
Brakes |
Disc front & rear, servo assisted |
Discs front & rear, servo assisted |
Front Suspension |
Coil & Wishbone |
Coil & Wishbone |
Rear Suspension |
Coil spring, live axle |
Coil spring, live axle |
Performance |
||
---|---|---|
Model |
DB5 |
DB5 Vantage |
Top Speed |
144 mph |
150 mph |
0-60 mph |
8.0 seconds |
6.5 seconds |
Fuel Consumption |
15 mpg |
14 mpg |
